Lateral Shaft Capacity in Free Head Condition

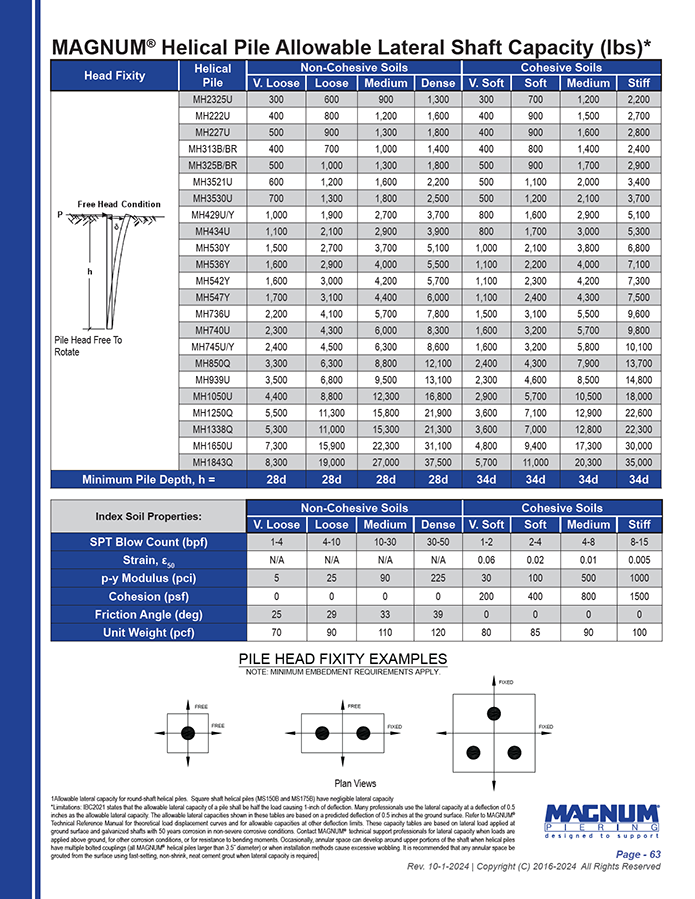

Table that shows the allowable lateral shaft capacity in non-cohesive and cohesive soils. Referenced for  MAGNUM® piles in their free head condition. Cart is organized by pile name and shaft diameter. General Listing of Helical Piles
