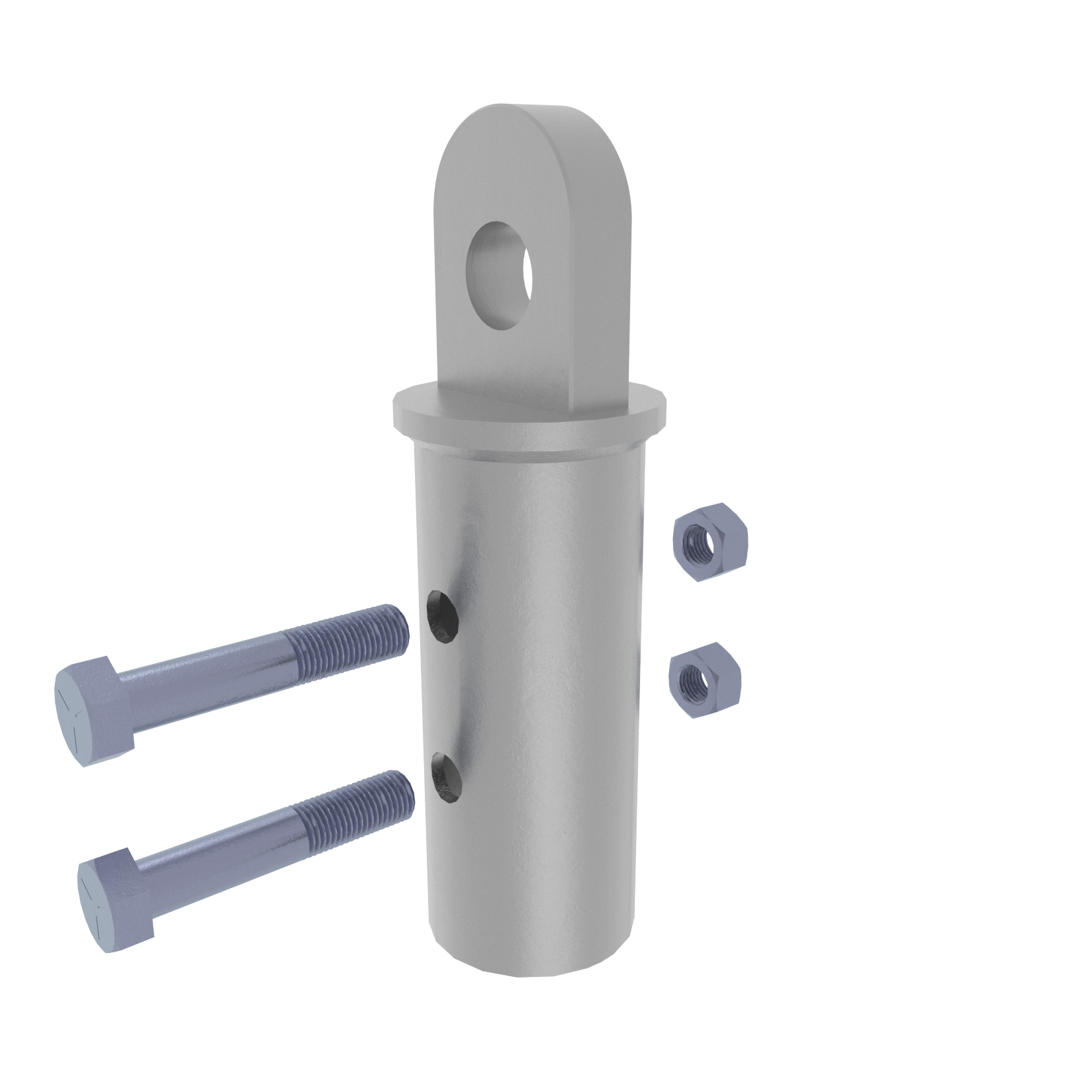

MHC1172-3BR2 Tie-Back Cap Guy Anchor

Magnum MSC1084-150B tie back anchor cap has 35 tons ultimate capacity and 20 tons allowable capacity in tension. The tie back anchor cap consists of two clevis plates and a square end plate with a hole for connection. The tie back anchor cap is design in accordance with ICC-ES documents as well as IBC and AISC codes. Design and detailing of the structure to which the helical pile cap is attached varies by project and is the responsibility of registered design professional including waler size (if any), bearing plate, wall facing (if any), and concrete cover as applicable.
