MHC1172-4B2 Tie-Back Cap Guy Anchor Allowable Capacity – 36 Tons

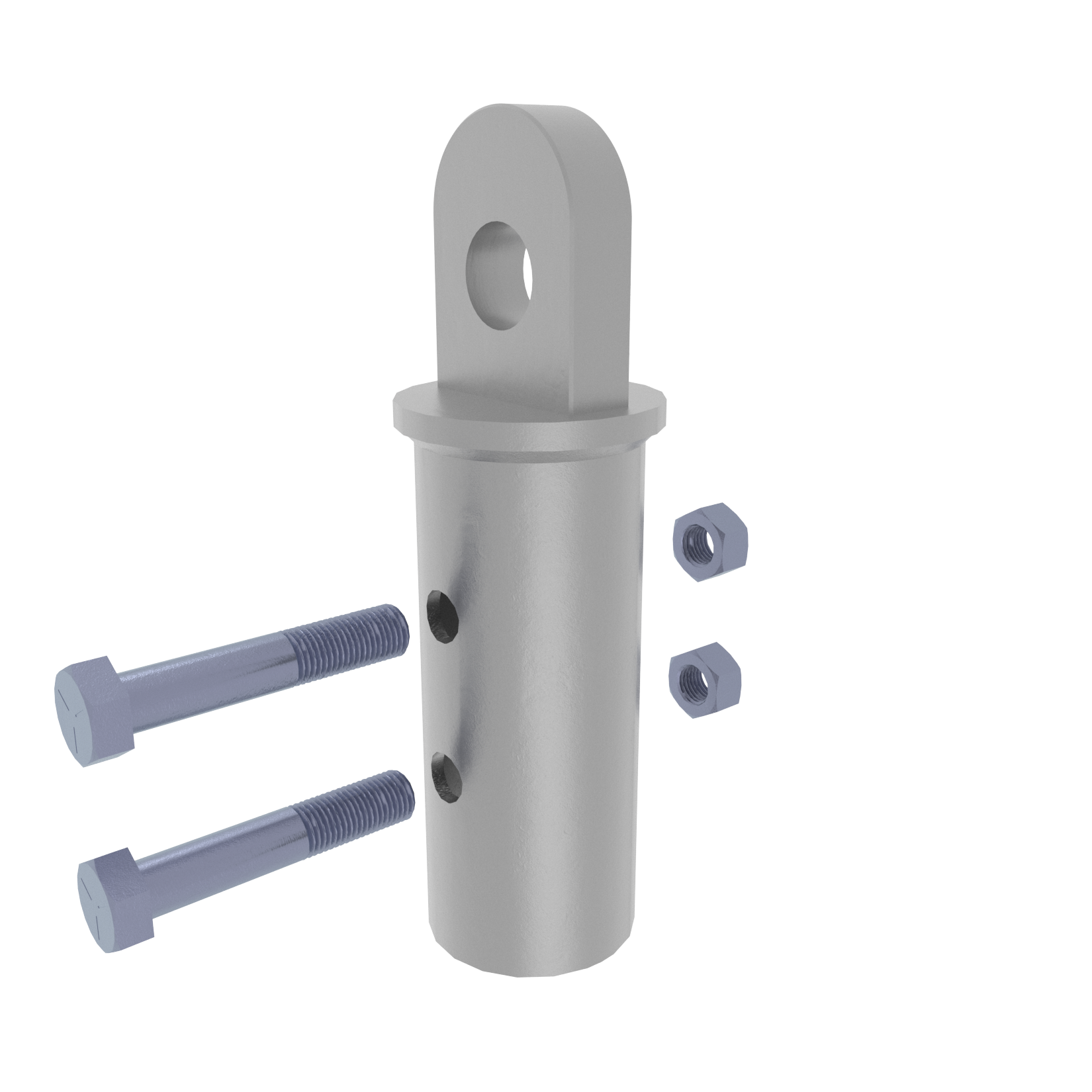

MHC1172-4B2 guy anchor cap consist of a collar tube with bolt holes for connection to MAGNUM® helical piles and a circular bearing plate with an integrated nut. MAGNUM® products are manufactured in the USA according to our ISO 9001 approved quality program. Structural capacities are developed according to AISC 360 considering an average design life of 75 years for hot-dip galvanized steel in most soil conditions. Bare steel is available upon request. Design and detailing of the structure, to which bearing plate cap is attached varies by project. It is the responsibility of the registered design professional.
Description

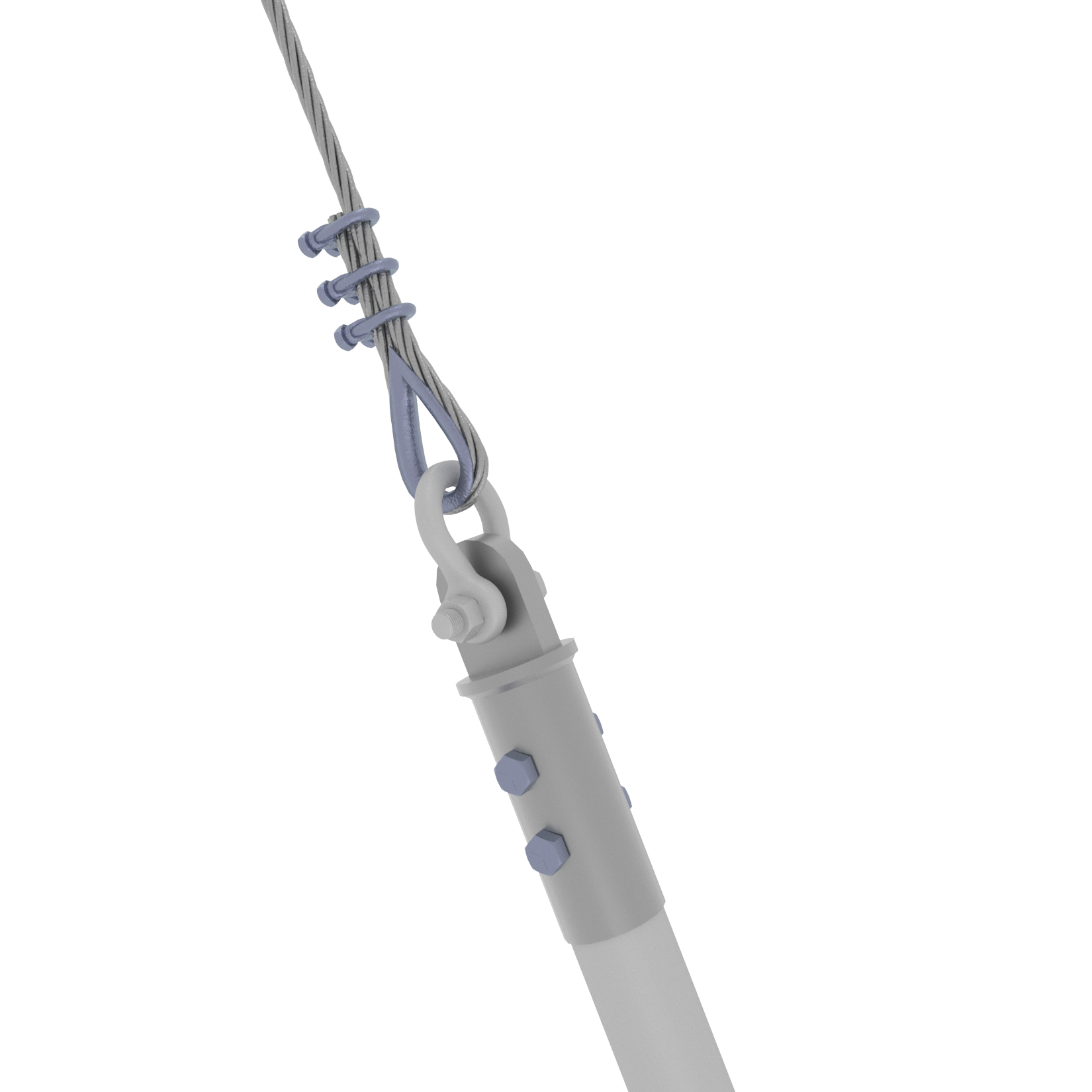

Install a MAGNUM® Helical Pile to the correct depth, torque, and capacity. Cut-off the pile shaft at the proper elevation. Drill (2) 15/16” diameter hole through the shaft using a MAGNUM® drill template. Place the pile cap over the shaft and secure with (2) 1-1/4” bolts. Snug tighten nuts. Alternatively, drilling through pile may be omitted and plug welds may be used to secure cap to pile in place of bolt, see MAGNUM® Technical Bulletin TB004.
Additional information
| Allowable Compression/Tension (Tons) | |
|---|---|
| Ultimate Compression/Tension (Tons) | NA / 65 Tons |
| Helical Pile Compatibility | https://magnumpiering.com/products/mh429u-helical-piles/ |
