MHC1300-7O1111B1 Bearing Plate Cap Allowable Capacity 82 Tons

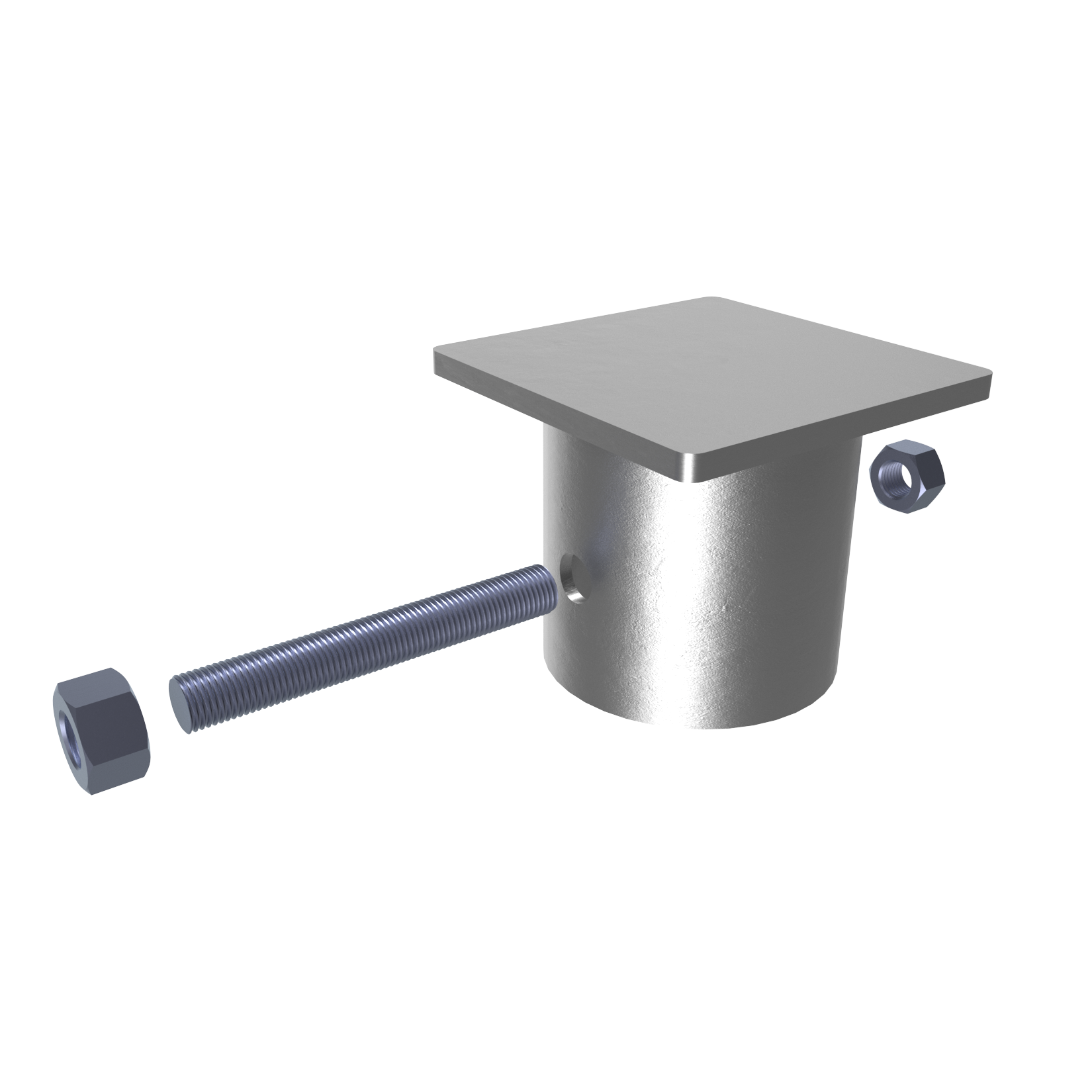

Bearing Plate Caps consist of a collar tube with bolt hole for connection to MAGNUM® helical screw piles and steel bearing plate for embedment in cast-in-place concrete. MAGNUM® products are manufactured in the USA according to our ISO 9001 approved quality program. Structural capacities are developed according to AISC 360 and ACI 318 considering an average design life of 75 years for bare steel in most soil conditions. Hot-dip galvanizing is available upon request. Design and detailing of the structure to which the bearing plate cap is embedded in varies by project and is the responsibility of the registered design professional.
Description

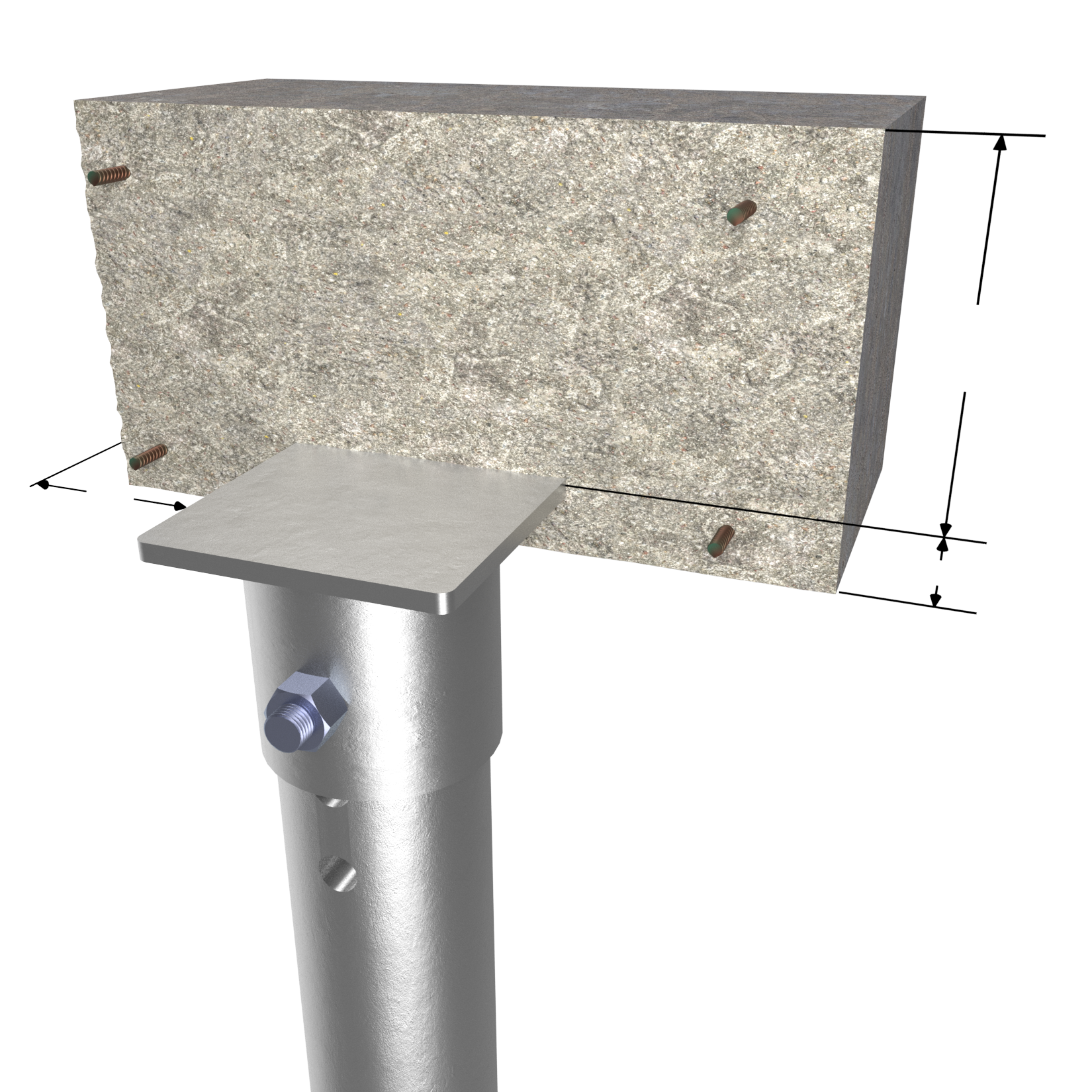

After installation of a MAGNUM® Helical Pile to the correct depth, torque, and capacity, cut-off the pile shaft at the proper elevation. Drill (1) 1-9/16” diameter hole through the shaft using a MAGNUM® drill template, place the cap over the shaft and secure with (1) 1-1/2” bolt. Snug tighten nut. Ensure direct bearing of plate on shaft. Place reinforcing steel, cast concrete and consolidate around the pile cap per project requirements
Additional information
| Allowable Compression / Tension | 82 Tons / 39 Tons |
|---|---|
| Ultimate Compression / Tension | 164 Tons / 78 Tons |
| Helical Pile Compatibility | https://magnumpiering.com/products/mh736u-6-helical-piles/ |
