MHC1350-9P24B3 Gusseted Cap Allowable Capacity 112 Tons

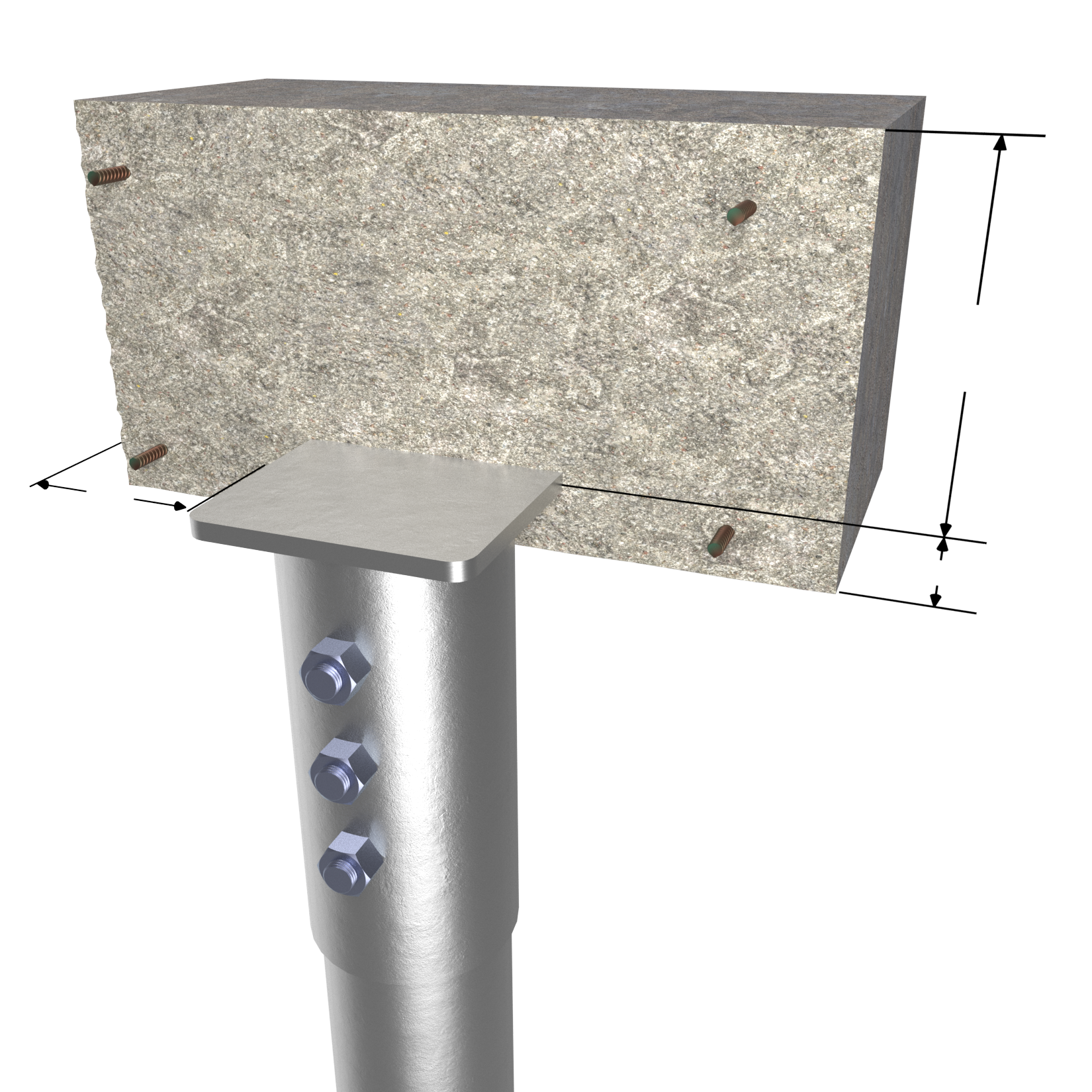

After installation of a MAGNUM® Helical Pile to the correct depth, torque, and capacity, cut-off the pile shaft at the proper elevation. Drill (3) 1-9/16” holes through the shaft using a MAGNUM® drill template, place the cap over the shaft and secure with (3) 1-1/2” bolts. Snug tighten nuts. Alternatively, drilling through pile may be omitted and plug welds may be used to secure cap to pile in place of bolt(s), see MAGNUM® Technical Bulletin TB004. Ensure direct bearing of plate on shaft.
Description
MHC1350-9P24B3 Gusseted Caps consist of a collar tube with a bolt holes for connection to MAGNUM® helical piles. A stiffened steel bearing plate. MAGNUM® products are manufactured in the USA according to our ISO 9001 approved quality program. Structural capacities are developed according to AISC 360 considering an average design life of 75 years for bare steel in most soil conditions. Hot-dip galvanizing is available upon request. Design and detailing of the structure, to which bearing plate cap is attached varies by project. It is the responsibility of the registered design professional..
Additional information
| Allowable Compression/ Tension (Tons) | 112 Tons / 112 Tons |
|---|---|
| Ultimate Compression/Tension Tons | 224 Tons / 224 Tons |
| Helical Pile Compatibility |
