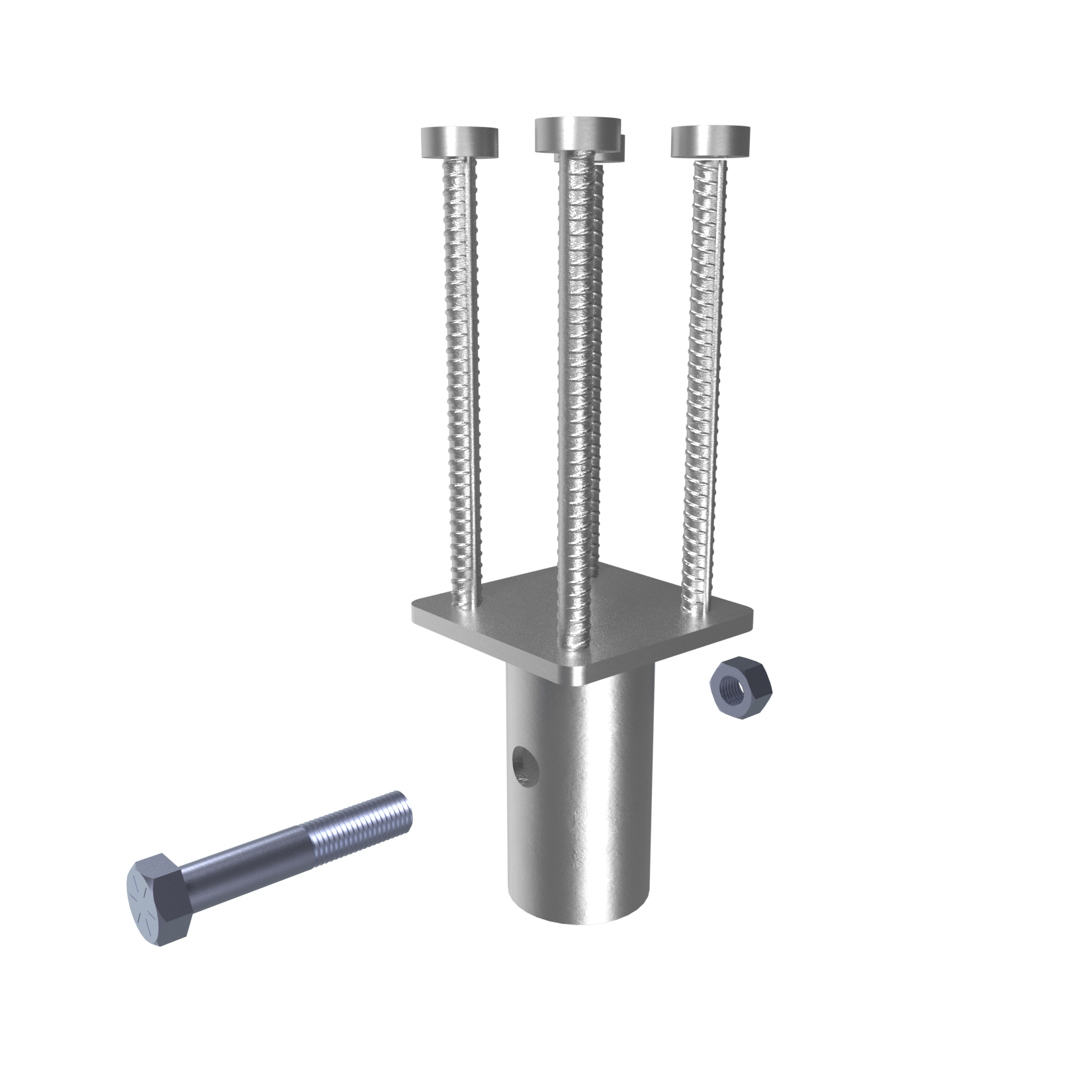

MHC1654-3M66S040BR1 Rebar Plate Cap

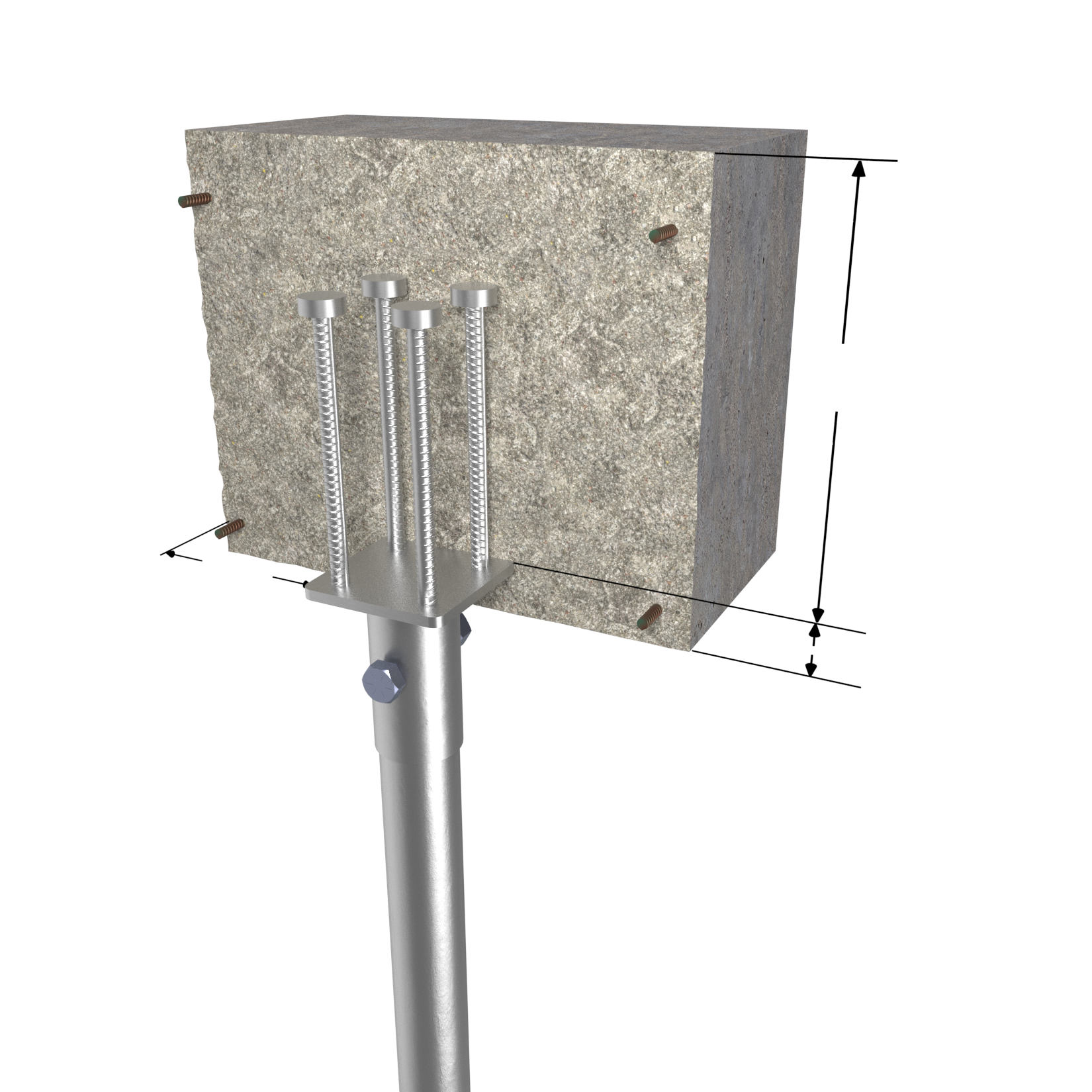

MHC1654-3M66S040BR1 Rebar Plate Caps (steel cap) provide superior embedment in concrete pile caps. Utilizing rigid bolted couplings to connect to helical piles and headed rebar studs to transfer tension and moment from the concrete pile cap into the pile. MAGNUM® products are manufactured in the USA according to our ISO 9001 approved Quality Program. Structural capacities are developed according to AISC 360 and ACI 318. This provides an average design life of 75 years for bare steel in most soil conditions. Hot-dip galvanizing is available upon request. Design and detailing of the structure to which rebar plate cap is embedded in varies by project and is the responsibility of the registered design professional.
Description
MHC1654-3M66S040BR1 Rebar Plate Cap
Cap capacity is developed using the ASD design method. This considers strength of collar, end effecter, and pile connection. Rebar studs conform to ACI 318 dimensions. They are designed to have full tension development in normal weight concrete with 28-day f’c ≥ 3,000 psi. Capacity may be limited by the helical pile, bearing/pullout capacity of soil, or strength of the concrete the cap is embedded in.
Additional information
| Allowable Compression/ Tension (Tons) | 59 Kips |
|---|---|
| Maximum Allowable Tension | 44 Kips |
| Maximum Allowable Moment | 3.7 Kip-Ft |
| Helical Pile Compatibility |
