MP1006-3 Reverse Angle Allowable Capacity 25 Tons

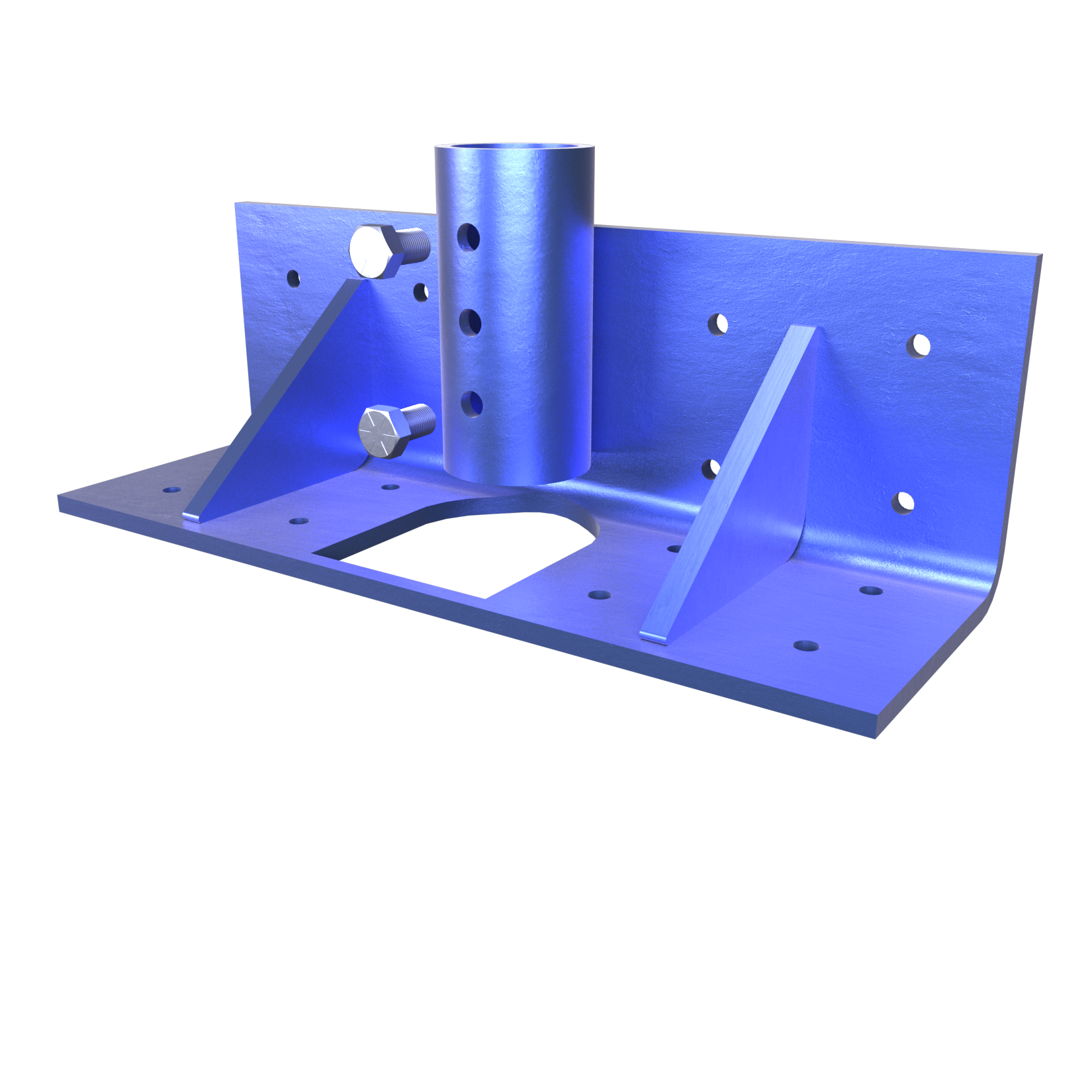

MP1006-3 reverse angle bracket consists of a collar tube with (3) 3/4˝ threaded bolt holes for connection to MAGNUM® Push Piers or Helical Piles and a steel angle with thru holes for attachment to existing concrete using expansion anchors. MAGNUM® products are manufactured in the USA according to our ISO 9001 approved quality program. MAGNUM® brackets are designed in accordance with ICC-AC358, IBC, ACI, and AISC codes. Design and detailing of the connection to the structure varies by project and is the responsibility of the registered design professional including maximum concrete span, pier spacing, concrete shear, and concrete bearing.
Description

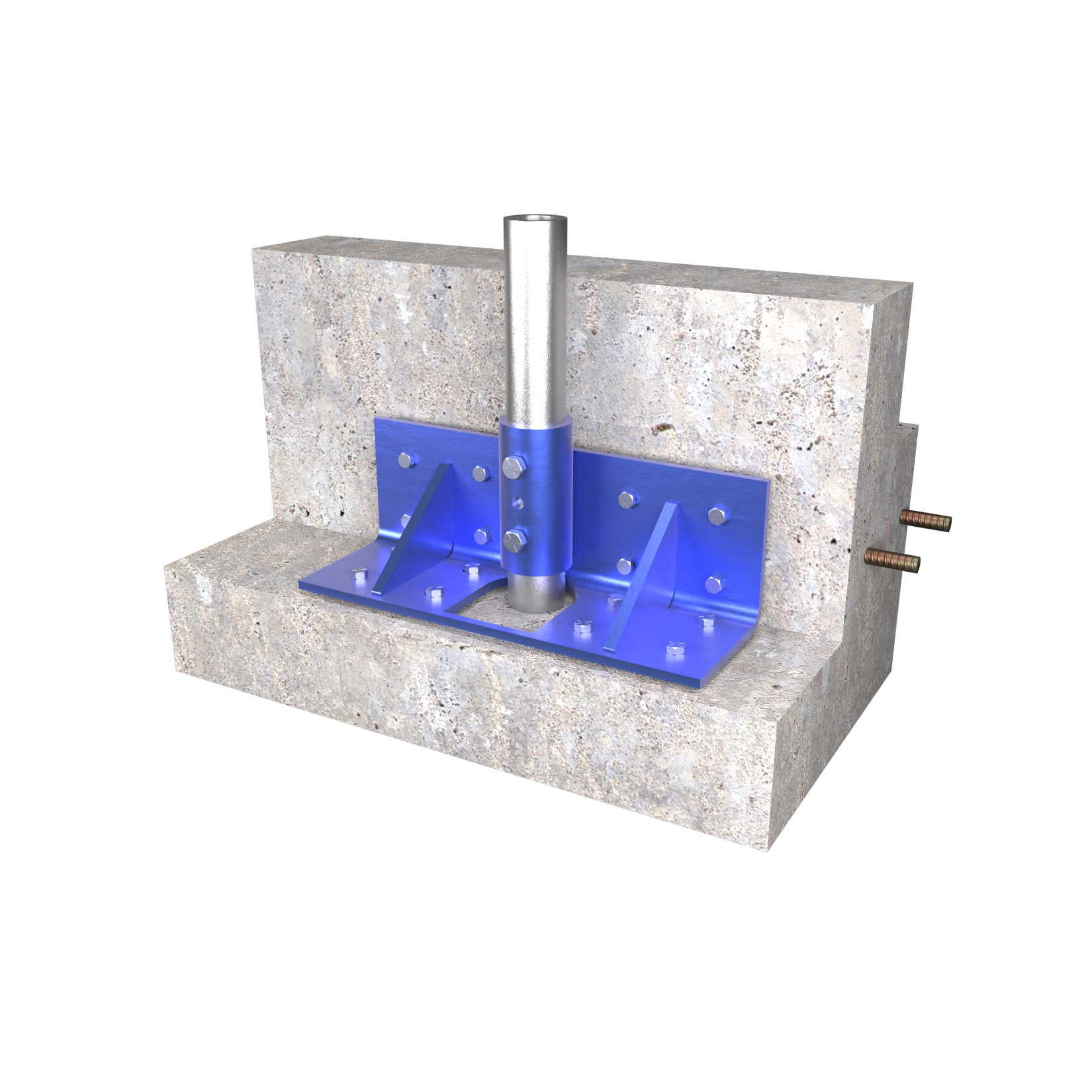

Prepare the existing foundation. Core a 3.50˝ diameter or larger hole through the footing or slab where the push pier is located. Attach the bracket and MAGNUM® ram. Install the push pier through the core hole to the required pressure and load test. Lift the structure as needed using either a MAGNUM® ram or lifting fixture. Drill holes and bolt the bracket to the pile.
Additional information
| Connection Type | |
|---|---|
| Allowable Capacity (ton) by Connection Type | 5 Tons, 8 Tons, 14 Tons |
| Ultimate Capacity (ton) by Connection Type | 10 Tons, 17 Tons, 28 Tons |
| Configuration | 8˝ x 8˝ x 24˝ x 1/2˝ Angle with (16) 11/16˝ Thru Holes and 3.13˝ I.D. Collar |
| Pile Size Compatibility | https://magnumpiering.com/products/mp313-push-pier-11-tons-allowable-capacity/ |
