Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Hardware | (2) 3/4" – 16 UNF SAE J429 Grade 5 Zinc Coated to ASTM B695/F1941 |
| Connection | Torque 7/8" Bolts to 365 ft-lbs |
| Component Type | Hanger |
| Bolts | (4) 7/8" – 9 UNC SAE J429 Grade 5 Zinc Coated to ASTM B695/F1941 |
| Coating |
Description

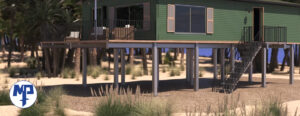

Making skyscraper building technology affordable for everyone, Magnum® Moment Frames are the “erector set” for residential and light commercial construction. Minimal steel erection experience required. These structural steel frames require no welding or hot rivets. Designed to resist hurricane wind loads, they are ideal for elevation of existing or new homes and commercial buildings in flood prone regions. No job is too small; they are perfect for high-end residential or commercial pool shelters, picnic shelters, and outdoor kitchen and living areas. They are galvanized for coastal exposure and a lifetime of service.
The Magnum MMA-BHG Moment Frame Beam Hanger consists of a Magnum 3/8″ Beam End Plate and web stiffeners for support on a Magnum Moment Frame Beam. The Beam Hanger is designed to attach to the side of a Magnum Moment Frame beam for perpendicular connections of beams where a column is not needed or not necessary.
Installation Notes:
The Magnum Beam Hanger may be used for specific cases, such as picking up intermediate support points in existing house frames Caution should be exercised for minimal use of this type of connection as it does not provide for a moment connection and therefore does not contribute to the overall overturning and wind bracing system. The connection supports vertical loads only.
All Magnum Products Made in U.S.A.
U.S.Patent 9249593; Other Patents Pending. NOTE: Many items made to order. Bulk discounts available. Contact Magnum representative regarding price and availability.
